Super Detection API

The APIs documented on this page are called "super APIs" because they are authenticated by partner's "super auth token".

Authentication​

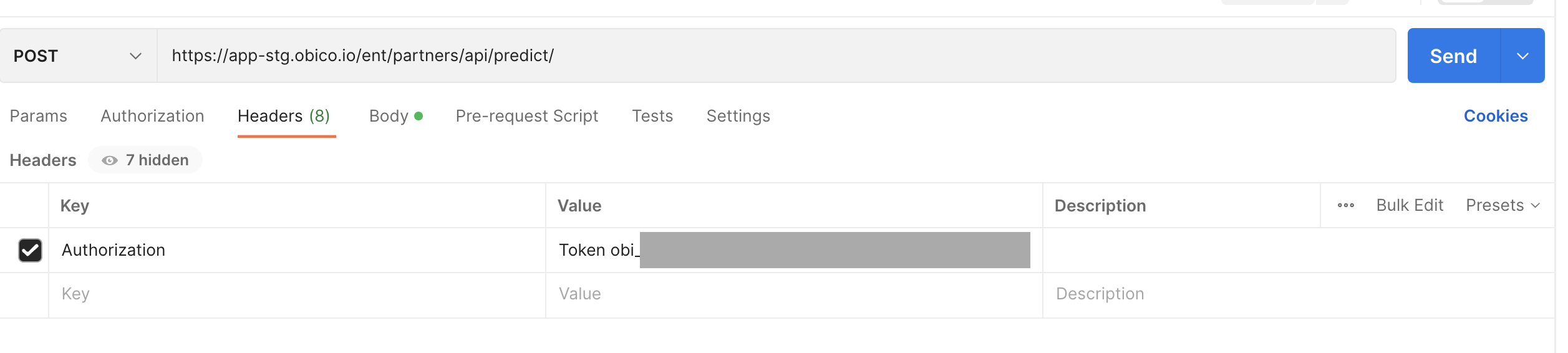

All APIs are authenticated by the authentication token in the HTTP request header:

Authorization: Token XXX

tip

Please contact Obico team to obtain your super auth token.

Endpoint​

  • https://app.obico.io/. Production endpoint. Please use this endpoint unless instructed by the Obico team differently.
  • https://app-stg.obico.io/. Staging endpoint. Please don't use unless instructed by the Obico team.

POST /ent/partners/api/predict/​

Request​

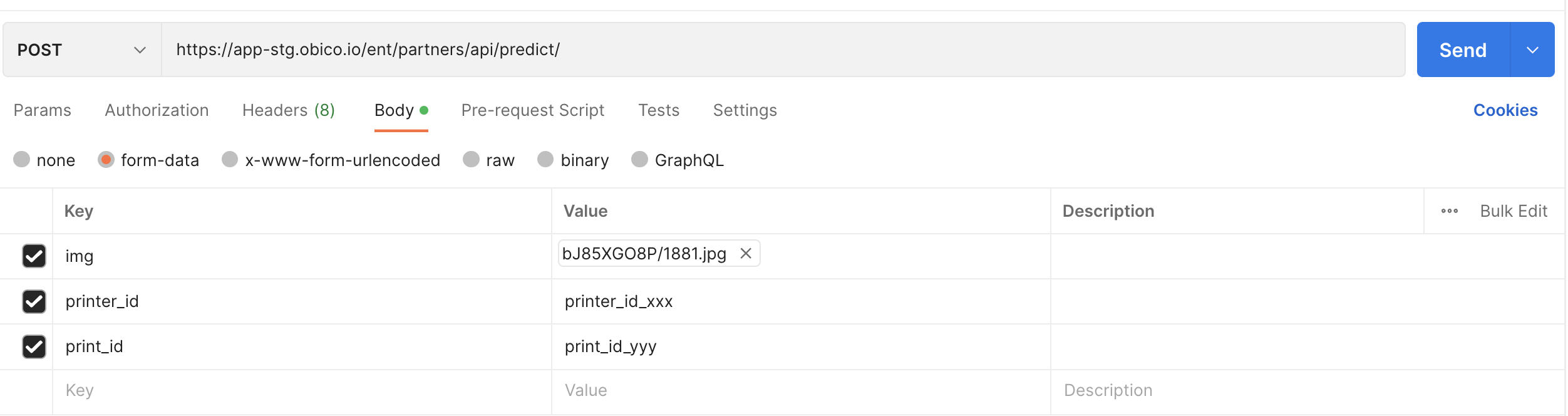

This POST request should be sent as multipart/form-data format.

Query parameters​

  • printer_id: A id that can uniquely identify the printer within your system. Max 256 characters.
  • print_id: A id that can uniquely identify the print within the printer it belongs. Max 256 characters.
  • img: Snapshot from the webcam for failure detection. In JPEG format.

Response​

Status code: 200​

API request was processed successfully.

Body​

{
  "result": {
    "p": 0,
    "temporal_stats": {
      "ewm_mean": 0,
      "rolling_mean_short": 0,
      "rolling_mean_long": 0,
      "prediction_num": 0,
      "prediction_num_lifetime": 0
    },
    "detections": [
        [0.541085422039032, [422.7984619140625, 236.30227661132812, 61.9364013671875, 74.49552917480469]],
        [0.43781569600105286, [426.05596923828125, 264.619140625, 42.386478424072266, 4.73854064941406]],
        [0.2545202076435089, [423.3209533691406, 238.6829071044922, 113.47953796386719, 135.73854064941406]],
        [0.20370429754257202, [456.3966369628906, 236.23785400390625, 39.029632568359375, 67.34481811523438]]
      ]
  }
}
  • p: A number between 0 and 1.0. 0 means no failure is detected. 1 means the maximum confidence on predicting a print failure.
  • temporal_stats: The temporal stats that may be useful in determining if a failure has actually occurred. These stats are important for smoothening the noises in failure detection. See the tip below for details.
    • ewm_mean: Exponentially weighted mean for p. EWM window span = 12.
    • rolling_mean_short: Short-term rolling mean for p. Rolling window span = 310. This rolling mean is reset to 0 when a new print starts.
    • rolling_mean_long: Long-term rolling mean for p. Rolling window span = 7200. This rolling mean is accumulated over the lifetime of the printer.
    • prediction_num: The number of predictions for the current print so far.
    • prediction_num_lifetime: The number of predictions for the life-time of the printer.
    • detections: A list of tuples. Each tuple is [confidence, [xc, yc, w, h]].
      • confidence: Range: [0, 1], where 0 means not failure and 1.0 means the maximum confidence on predicting a print failure.
      • [xc, yc, w, h]: Rectangle of the detected area. xc and yc are the X and Y coordinates of the center of the rectangle. w and h are the width and hight of the rectangle.
tip

It's a good practice to use the temporal stats to smoothen out the noises in failure detection. Otherwise there may be excessive amount of false alarms.

In Obico open-source server, the way these temporal stats are used can be simplistically described as below:

  • If ewm_mean - rolling_mean_long < 0.36: no failure.
  • Else if ewm_mean - rolling_mean_long > 0.99: failure.
  • Else if ewm_mean - rolling_mean_long > 0.78: maybe failure.
  • Else if ewm_mean > (rolling_mean_short - rolling_mean_long) * 3.8: maybe failure.
tip

All these "magic numbers", such as the rolling window sizes, or thresholds such as 0.36 or 0.78, should be considered as hyper-parameters. You are highly recommended to go through the hyper-parameters tuning process to find the optimal values for them.

Status code: 400​

API request was NOT processed successfully for other reasons, such as missing required parameters.

Body​

{
  "error": "Detailed error message"
}

Status code: 401​

Super auth_token is not valid. Contact Obico team member.

Body​

{
  "error": "Invalid or Inactive Token",
  "is_authenticated": "False"
}

Status code: 429​

API request was NOT processed successfully because of rate throttling. Contact Obico team member to increase your rate limit.

Body​

{
  "error": "You are running too hot! Take it easy buddy..."
}
